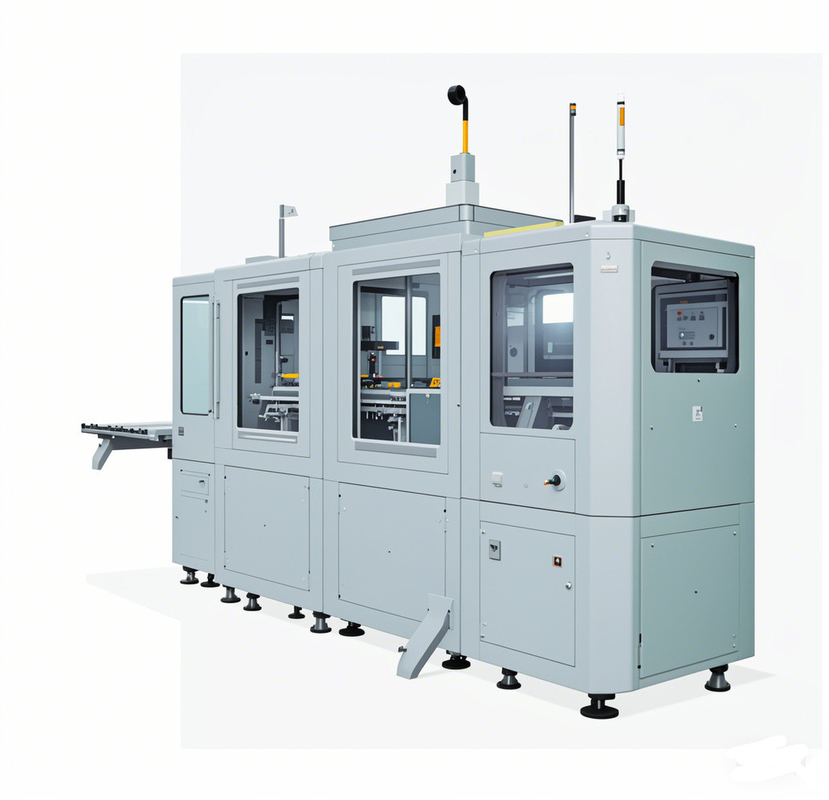

Custom assembly equipment
Automotive Thermal ManagementAutomation Solution
Quanstar Intelligent Controls (Shanghai) Co.,Ltd has delveloped deep into the automotive thermal management industry, forming a technical system centered around advanced detection technology, automation control technology, and robot integration technology, to provide manufacturers with the best system solutions for the automotive parts industry.
The processes involved in the assembly and inspection production line of thermal management system products include automatic assembly, automatic gluing, automatic screw tightening, Servopressing, robotic loading and unloading, leakage detection, vehicle vibration detection, visual automatic detection, tooling caching, information tracing, etc. The overall solution involves components such as HVAC, cooling modules, PTC and etc.
| Category |
Parameter |
Description |
| General Specifications |
Valve Type |
Thermal Expansion Valve (TXV) or Electronic Expansion Valve (EXV) |
| |
Application |
Residential, commercial, automotive, or industrial air conditioning systems |
| |
Refrigerant Compatibility |
R22, R410A, R134a, R32, or other common refrigerants |
| |
Material |
Brass, stainless steel, or other corrosion-resistant materials |
| Performance Parameters |
Flow Capacity |
0.5 to 10 tons of refrigeration (depending on model) |
| |
Operating Pressure Range |
50 to 500 psi (depending on refrigerant type) |
| |
Temperature Range |
-40°C to 120°C (-40°F to 248°F) |
| |
Superheat Adjustment Range |
Typically 2°C to 10°C (3.6°F to 18°F) |
| Design Features |
Connection Type |
Flare, solder, or threaded connections |
| |
Orifice Size |
Adjustable or fixed orifice (e.g., 0.5mm to 2.5mm) |
| |
Sensing Bulb Type |
Liquid-charged or gas-charged for TXV; electronic for EXV |
| Electrical Specifications (for EXV) |
Voltage Requirement |
12V, 24V, or 220V (depending on model) |
| |
Control Signal |
PWM (Pulse Width Modulation) or analog signal |
| Installation & Maintenance |
Mounting Orientation |
Horizontal or vertical (depending on model) |
| |
Maintenance Requirements |
Periodic inspection and cleaning of orifice and sensing bulb |
| Safety & Compliance |
Certifications |
CE, UL, or other industry standards |
| |
Leak Protection |
Designed to minimize refrigerant leakage |
| Environmental Considerations |
Refrigerant Type |
Compatible with eco-friendly refrigerants (e.g., R32, R290) |
| |
Energy Efficiency |
Optimized for high-efficiency air conditioning systems |
FAQ
1.Q: Are you trading company or manufacturer?
A: We are a manufacturer with over 10 years of production and development experience.
2.Q: What are your major products?
A: We are an assembly automation solution provider specialized in customized automatic machinery for production. For example, we provide customized asembly line, testing and packaging solutions to several electric vehicle (EV) manufacturers, such as component-level lines for battery packs, thermal management systems, steerings and so on.
3. Q: How long is your delivery time?
A: Usually 3 months is a production cycle, the specific delivery date should be arranged according to the product’s complexity and real-time production schedule. Please contact us for the latest delivery date.
4.Q: How about your price?
A: Show us your parts and we will be glad to find solutions and provide a suitable scheme, and offer the most competitive price to you.
5.Q: What is your terms of payment ?
A: 40% deposit and 60% balance payment before delivery.
6.Q: What is the package for you machine?
A: We have standard wooden case package.
7.Q: How long is the warranty?
A: Our aftersale service is one year free warranty, and life-time maintenance guaranteed.
8.Q:What partners do you work with?
A: We can both work with customer’s designated partners and propose other components partners at customer’s request. Some of our technical partners as below:
