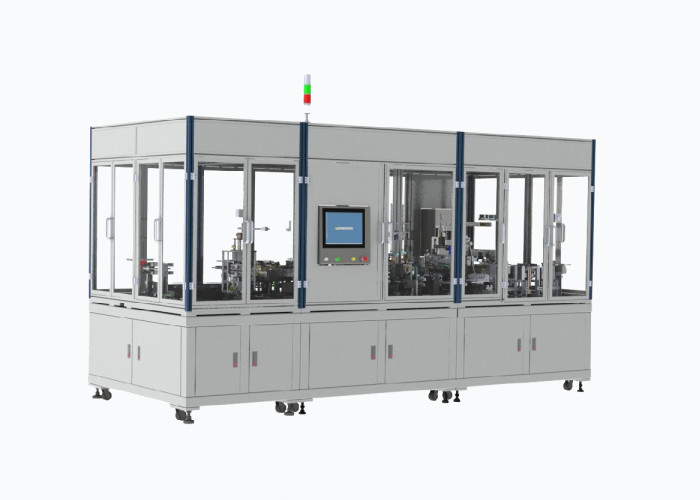

PLC / HMI Fully Automatic Medical Device Assembly Machine
|
PLC / HMI Fully Automatic Medical Device Assembly Machine
| Place of Origin | Shanghai |
| Brand Name | Quanstar |
| Certification | ISO |
| Document | Product Brochure PDF |
Product Details
Name:
Medical Device Assembly Machine
Industry:
Medical
Type:
Fully Automatic
Control System:
PLC, HMI
Condition:
New
Warranty:
One Year
Highlight:
Fully Automatic Medical Device Assembly Machine
,PLC Medical Device Assembly Machine
,HMI Automatic Medical Device Assembly Machine
Payment & Shipping Terms
Packaging Details
wooden box
Payment Terms
L/C,T/T
Product Description
PLC / HMI Fully Automatic Medical Device Assembly Machine
Product Specifications
| Name | Medical device assembly machine |
| Industry | Medical |
| Type | Fully automatic |
| Control system | PLC, HMI |
| Condition | New |
| Warranty | One year |
Distinctive Characteristics
- Aseptic Options: Compatible with radiation/ethylene oxide sterilization
- Quick Adaptation: Under 10-minute format conversion
- Biocompatible Construction: All product-contact surfaces meet USP Class VI/ISO 10993
- Micro-Assembly: Available robotic vision systems for miniature components
Common Uses
- Drug Delivery: Prefilled syringes, insulin devices
- Fluid Therapy: Intravenous administration sets
- Operating Room: Single-use surgical tools
- Testing Equipment: Diagnostic cassettes
Technical Parameters
| System Overview | ||
|---|---|---|
| Production Line Span | 5-30 meters (expandable modular architecture) | |
| Output Capacity | 50-300 units/minute (varies by product complexity) | |
| Processing Stations | 5-20 modules (adaptable layout) | |
| Electrical Requirements | 220V/380V AC, 50/60Hz (cleanroom-certified components) | |
| Sterile Environment | ISO Class 5-8 (optional HEPA/ULPA filtration systems) | |
| Assembly Unit | ||
| Positioning Tolerance | ±0.1 mm (medical device precision standard) | |
| End Effector Options | Medical-certified silicone/pneumatic (meets FDA regulations) | |
| Plastic Joining | 20-40 kHz ultrasonic bonding (for component sealing) | |
| Part Dimensions | Accommodates 5-300 mm components | |
| Quality Control | ||
| Imaging System | 5-10 megapixel cameras (10-30 micron/pixel resolution) | |
| Flaw Identification | Detects particles, cosmetic imperfections, size variations | |
| Seal Integrity | Identifies leaks ≥1 micron (validated for fluid containers) | |
| Microbial Check | Optional adenosine triphosphate detection | |
Frequently Asked Questions
Q: Are you trading company or manufacturer?
A: We are a manufacturer with over 10 years of production and development experience.
Q: What are your major products?
A: We are an assembly automation solution provider specialized in customized automatic machinery for production. For example, we provide customized assembly line, testing and packaging solutions to several electric vehicle (EV) manufacturers, such as component-level lines for battery packs, thermal management systems, steerings and so on.
Q: How long is your delivery time?
A: Usually 3 months is a production cycle, the specific delivery date should be arranged according to the product's complexity and real-time production schedule. Please contact us for the latest delivery date.
Q: How about your price?
A: Show us your parts and we will be glad to find solutions and provide a suitable scheme, and offer the most competitive price to you.
Q: What is your terms of payment?
A: 40% deposit and 60% balance payment before delivery.
Q: What is the package for your machine?
A: We have standard wooden case package.
Q: How long is the warranty?
A: Our aftersale service is one year free warranty, and life-time maintenance guaranteed.
Q: What partners do you work with?
A: We can both work with customer's designated partners and propose other components partners at customer's request.
